Sony IMX577 · 12.3MP 1/2.3" rolling-shutter CMOS image sensor
IMX577 Sensor Specifications & Compatible M12 and C-Mount Lenses

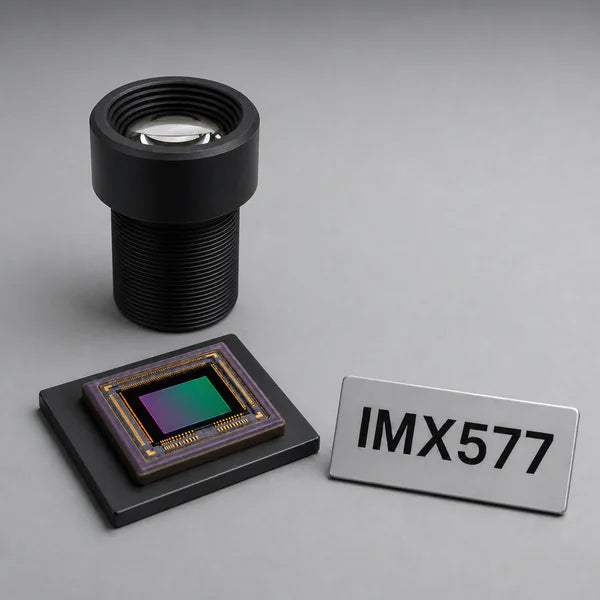

IMX577 is a Sony 1/2.3-inch rolling-shutter CMOS image sensor built on the Exmor RS back-illuminated process, closely related to the IMX477 used in the Raspberry Pi HQ Camera and common in industrial 4K camera modules and single-board-computer vision. It captures 4056x3040 (12.3 MP) at 60 fps with 1.55um pixels on a 7.86mm diagonal over MIPI CSI-2. Commonlands matches M12 Lenses to its 7.86mm image circle and reports the calculated horizontal, vertical, and diagonal field of view for each option.
IMX577 specifications
| Part number | IMX577 |
|---|---|
| Hersteller | Sony |
| Family | Exmor RS |
| Beschluss | 4056 × 3040 (12,3 MP) |
| Optisches Format | 1/2,3" |
| Active area | 6.29 × 4.71 mm |
| Sensor diagonal | 7.86 mm |
| Pixelgröße | 1,55 µm |
| Verschluss | Rollen |
| Maximale Bildrate | 60 fps |
| Schnittstelle | MIPI CSI-2 |
| Color / mono | Color |
Manufacturer datasheet: Sony IMX577 product page
Lens selection for the IMX577 with calculated field of view
Each field of view below is calculated for the IMX577 active area (6.29 × 4.71 mm) from Commonlands’ per-lens field-of-view data, which reflects each lens’s real distortion rather than a focal-length-only estimate. Alongside the horizontal, vertical, and diagonal field of view, each row lists focal length, mount, aperture (F#), and coverage. Follow the product links for distortion, ingress protection, dimensions, and resolution specifications. Coverage compares the lens image circle with the 7.86 mm sensor diagonal. Entries marked Circular image do not cover the full diagonal; part of the sensor lies outside the image circle. Run working-distance and object-size numbers through the field of view calculator.
Engineering picks for the IMX577
- Best ~30° HFoV: Telephoto 12mm M12 Lens (CIL122) (12 mm, f/2). Why: the closest covering option to 30° horizontal, chosen for tight inspection framing and long read ranges. Field of view on the IMX577: 30° H × 22° V (37° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~60° HFoV: Low Distortion 5.2mm M12 Lens (CIL052) (5.2 mm, f/3.4). Why: the closest covering option to 60° horizontal, chosen for general-purpose machine-vision framing. Field of view on the IMX577: 63° H × 49° V (75° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~120° HFoV: Wide-Angle 3.2mm M12 Lens (CIL391) (3.2 mm, f/2.7). Why: the closest covering option to 120° horizontal, chosen for wide navigation and room-scale coverage. Field of view on the IMX577: 119° H × 87° V (154° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Lowest distortion: Low Distortion 4.4mm M12 Lens (CIL043) (4.4 mm, f/3.2). Why: measured -0.5% TV distortion, the flattest image among covering lenses. Field of view on the IMX577: 71° H × 57° V (84° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best low light: 8mm C-Mount Lens (CIL521) (8 mm, f/1.5). Why: the fastest covering aperture (f/1.5), which collects the most light per pixel. Field of view on the IMX577: 43° H × 33° V (52° diagonal). The image circle covers the full sensor (verified 2026-07-02).
Browse the M12 Lens collection and the C-Mount Lens collection for the IMX577. Covering lenses below run from 1.5 mm to 100 mm focal length and produce 4° to 190° horizontal field of view on its active area.
Covers in the table means the lens image circle is at least as large as the 7.86 mm sensor diagonal. Confirm corner illumination and MTF at your aperture, wavelength, and working distance. A complete circular fisheye image fits inside the sensor only when its diameter is no larger than the sensor's short side. Need a focal length or coverage that is not listed here? Ask our engineers to confirm a match.
How to choose a lens for the IMX577
Start from the field of view and working distance your application needs. Confirm that the lens image circle covers the active sensor diagonal and that the mount provides the required focus travel and rear clearance. A lens megapixel rating alone does not establish resolution on this sensor. Compare measured MTF at the spatial frequencies your task needs, at the intended aperture, wavelength, distance, and field position, accounting for the 1.55 µm pixel pitch. Estimate framing with the Commonlands field of view calculator.
Sourcing a camera module around the IMX577? Commonlands manufactures M12 lenses and C-mount lenses and ships from San Diego, with same-day shipping on in-stock lenses ordered before 12 PM PST. We also design and build custom MIPI CSI-2 camera modules that integrate the lens, the IMX577 sensor, and the carrier board, available from 1,000 units per year, and assemble consigned IMX577 boards with Commonlands lenses in our San Diego ISO 6 cleanroom from 100 to 100,000 units per year. Talk to an applications engineer.
