8mm M12 Lens for Board Mount Cameras such as IMX226 and IMX678

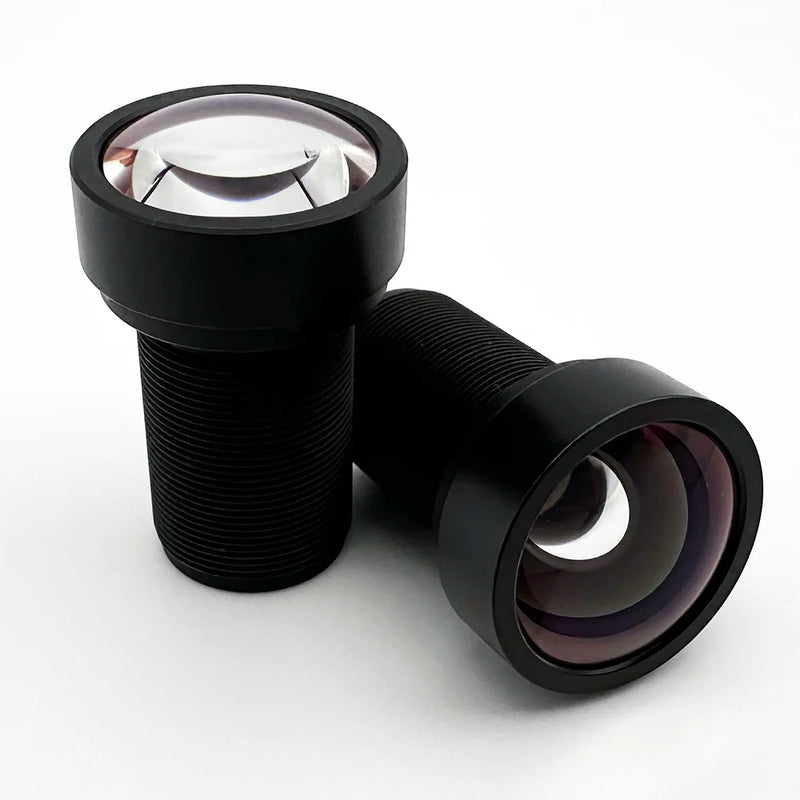

8mm M12 Lens
In stock — orders before 12 PM PST ship same day
Merkmale des Objektivs
Geringe Verzerrung
A high quality low distortion image is great for computer vision.
All Glass All-Metal
Good thermal stability with all-glass all-metal construction.
Tabelle der optischen und mechanischen Spezifikationen
| Objektiv Parameter | Leistung Detail |
|---|---|
| Teil Nummer | CIL085 |
| EFL | 8.2 |
| F# | 2.3, 4.4 |
| Auflösung | F/3.0: 12MP, 1.55μm F/4.4: 6MP-8MP |
| Sichtfeld | 57° @ 8.8mm image circle — Calculate FoV for your sensor |
| Bildkreis | 8.9mm |
| Verzerrung | -0.9% TV @8.8mm |
| Gewicht | 11g |
| IR-Cut-Off-Filter | P/N With: CIL085-F2.3-M12B650 P/N Without: CIL085-F2.3-M12BNIR |
| Bauwesen | 8G+IRC with Aluminum Barrel |
Mechanische Varianten
| Variante | Beschreibung |
|---|---|
| M12B | Kein Schutz gegen Eindringen, BBAR auf Linse 1 Oberfläche 1, AL6061 Kappe+Trommel |
Mechanisches Layout
Tabelle zur mechanischen Kompatibilität der Kamera*
| Kamera/Mount | Kompatibilität |
|---|---|
| Commonlands CLA019 | CLA019 |
| e-con Systems S-Mount | 8mm-15mm tall holder |
| Allied Vision Alvium S-Montage | Ja |
| FLIR Blackfly S Karte | Ja |
| iDS uEye LE | Rev1.1: Yes, Rev1.2: P/N Must end in C-No |
| Die Bildgebungsquelle M12 | Ja |
| Basler Dart S-Mount | Ja |
*Nur mechanische Kompatibilität, unter der Annahme, dass der Standard M12x0,5 Objektivanschluss vom Kamerahersteller bereitgestellt wird. Bitte prüfen Sie die optische Kompatibilität separat.
Frequently asked questions
What sensors are compatible with the CIL085 8mm M12 lens?
Covers 1/1.7″ and 1/1.8″ sensors including the Sony IMX226, Sony IMX678, and ON Semiconductor AR0820. The 8.9mm image circle fully covers these sensor formats.
How much distortion does the CIL085 have?
The CIL085 has -0.9% TV distortion at the 8.8mm image circle. Low enough for barcode scanning, OCR, and dimensional measurement without software distortion correction in most pipelines.
What is the difference between the F/3.0 and F/4.4 CIL085 variants?
The F/3.0 variant resolves 12MP at 1.55μm pixel pitch. Pick this when detail matters most and light is available. The F/4.4 variant resolves 6-8MP with deeper depth of field, better for applications where objects sit at varying distances from the lens.
Which lens holders work with the CIL085 M12 lens?
The Commonlands CLA019 is the recommended holder. e-con Systems boards need an 8-15mm tall mount. FLIR Blackfly S, Allied Vision Alvium, Basler Dart, The Imaging Source, and iDS uEye LE Rev1.1 are all mechanically compatible.
Does the CIL085 ship same day from the US?
Yes. All in-stock CIL085 lenses ship same day from San Diego for orders placed before 12 PM PST.
Can I get a mechanical drawing or STP file for the CIL085?
Yes. The interactive 3D model is on the product page. Contact engineering@commonlands.com for .STP files and detailed mechanical drawings for your CAD integration.
