Professional optical assembly for Commonlands lenses in Class 1000 cleanroom

🔬 ISO 6 Cleanroom
📦 100-100K Units/Year
🔧 Active Alignment
📱 MIPI CSI-2 Interface
Request Assembly Quote Browse M12 Lenses

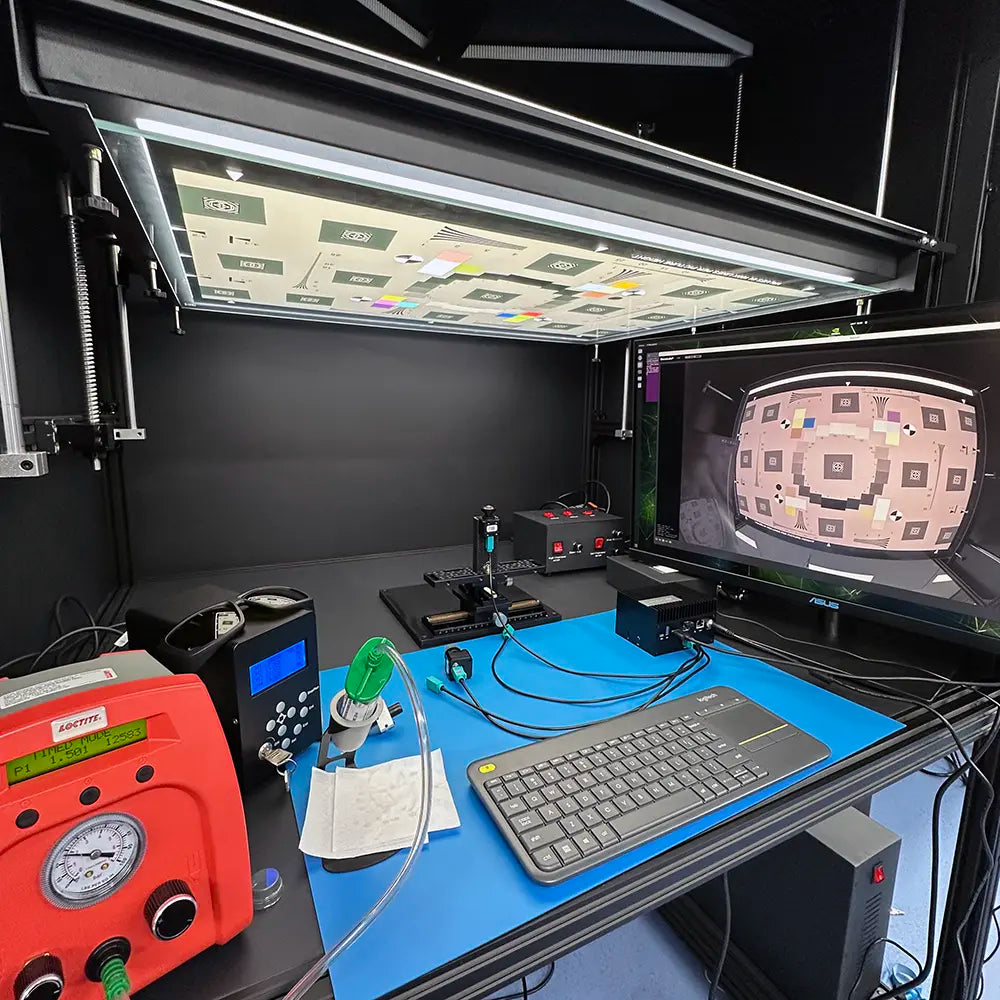

Camera module cleanroom assembly station

Camera Module Assembly Options

Professional assembly services exclusively for Commonlands lens customers

🔬

Consigned Assembly

100 - 10,000 units/year

Precision manual assembly for customer-provided sensors paired with Commonlands lenses. Our technicians perform optical alignment, adhesive dispensing, and flex cable attachment within controlled environments. Perfect for startups validating designs or companies needing reliable assembly without capital equipment investment.

  • Cleanroom Class 1000 (ISO 6)
  • Lens Options Commonlands M12, C-mount
  • Lead Time 5-10 days
  • Annual Capacity Up to 100,000 pieces
Request Assembly Quote →
🚀

Custom MIPI Modules

>1,000 units/year

Custom MIPI CSI-2 camera module development featuring Commonlands optics with active alignment capabilities. We handle schematic design and PCB layout with precision active alignment systems achieving superior optical performance. Complete integration with our M12 or C-mount lenses optimized for your specific sensor and application requirements.

  • Interface Support MIPI CSI-2
  • Active Alignment Available
  • Sample Lead-time 8 weeks
  • Lens Integration Commonlands Lenses
Select M12 Lens →

Proven Production Success

Real-world high-volume camera module assembly

IMX577 camera module with CIL227 fisheye lens

Volume IMX577 Customer Example

Successfully delivered >10kpcs camera modules combining Sony IMX577 sensors with CIL227 3mm fisheye M12 lens. This volume project demonstrates our capability to scale from prototype to production while maintaining consistent optical performance.

20,000 Units Delivered
IMX577 12MP Sensor
CIL227 3mm Fisheye Lens
180° Field of View

This project showcased our ability to maintain sub-1% defect rates across large production runs while meeting aggressive delivery schedules. The combination of our CIL227 fisheye lens with the high-resolution IMX577 sensor delivered exceptional wide-angle performance for robotics navigation.

🔍

Why Commonlands Lenses?

Our assembly service is exclusively available for customers using Commonlands optical products. This integrated approach ensures perfect lens-sensor compatibility, streamlined quality control, and single-source accountability for your vision system performance.

Commonlands M12 and M8 lens collection

Choose from over 200 M12 lenses, professional C-mount options, or miniature M8 designs. Every lens undergoes 100% MTF testing before assembly, guaranteeing optical performance meets specifications. This quality assurance combined with cleanroom assembly delivers reliable camera modules for machine vision applications.

Browse Our Lens Collection →

How Does Camera Module Assembly Work?

Our systematic approach ensures optical precision with Commonlands lenses

1

Lens Selection

Choose from our M12, C-mount, or M8 lens collection matched to your sensor specifications

2

Component Inspection

Incoming QC validates Commonlands lens MTF and sensor PCBA cleanliness/function

3

Precision Assembly

Manual or active alignment achieves optimal sensor-to-lens positioning with UV-cure adhesive

4

Validation Testing

Image quality verification and functional testing ensures specifications

What Are Our Technical Capabilities?

Comprehensive assembly services for embedded vision systems

Sensor Integration

  • Sony IMX, OmniVision, OnSemi sensors
  • Rolling & global shutter support
  • RGB Bayer and monochrome formats
  • 1/4" to 1" optical formats
  • Commonlands lens optimization

Mechanical Assembly

  • M12, CS, and C-mount threading
  • Precision manual alignment
  • Active alignment for custom modules
  • Focus and back-focal adjustment
  • IR filter installation

Production Capacity

  • 100 to 100,000 units per year
  • MIPI CSI-2 implementation
  • I2C and SPI configuration
  • Board-to-board connectors
  • ESD protection implementation

Häufig gestellte Fragen

Common questions about camera module assembly services

What is the minimum order quantity for camera module assembly? ▼
For consigned camera assembly using manual stations, we support quantities from 100 units with capacity up to 100,000 units per year. This range suits prototype validation through high-volume production. Custom MIPI camera module development with active alignment requires minimum annual volumes of 1000 pieces to justify NRE costs. All assemblies require use of Commonlands lenses.
Do I need to use Commonlands lenses for assembly services? ▼
Yes, our camera module assembly service is exclusively available for customers using Commonlands optical products including M12 lenses, C-mount lenses, and M8 lenses. This ensures optimal optical performance and quality control throughout the assembly process. Browse our extensive lens collection at commonlands.com/collections/m12-lenses to find the right optics for your application.
What cleanroom classification is used for camera assembly? ▼
Our camera modules are assembled in a Class 1000 (ISO 6) cleanroom environment, maintaining less than 1000 particles per cubic foot at 0.5 micron size. This prevents sensor contamination that causes dark spots and image artifacts. Operators wear full bunny suits, and all tools undergo ultrasonic cleaning between builds.
Is active alignment available for high-precision applications? ▼
Yes, active alignment is available for custom MIPI module projects requiring superior optical performance. This automated process uses real-time image feedback to achieve optimal sensor-to-lens positioning, ideal for applications demanding tight tolerances. Active alignment is particularly beneficial for high-resolution sensors and wide-angle lenses where precise centering is critical.
Can you work with customer-supplied sensors? ▼
Yes, we specialize in consigned assembly where customers provide sensors or pre-assembled sensor boards while selecting from our Commonlands lens catalog. Our technicians handle optical alignment between your sensor and our lenses, plus flex cable attachment and module integration. We maintain chain-of-custody documentation and can sign NDAs for proprietary designs.
What testing is performed on assembled modules? ▼
Every module undergoes optical inspection for particle contamination, adhesive coverage verification, and alignment checks between Commonlands lenses and sensors. Functional testing includes image capture validation, I2C communication verification, and current consumption measurement. Optional services include MTF testing, thermal cycling (-40°C to +85°C), and vibration testing per customer specifications.
