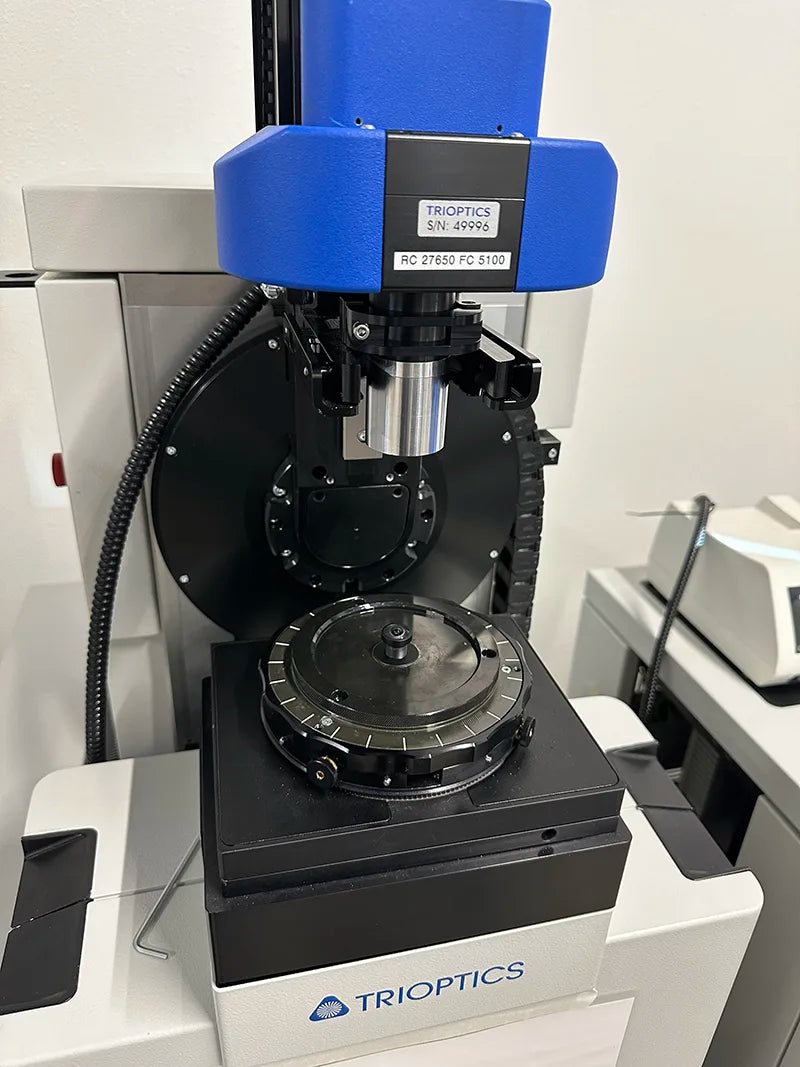

Imaging Lens Testing Service.webp__PID:81c8ec7d-895d-4327-b19a-093b79971177Download the Machine Brochure

Standard Included Test Items
(Pricing is per unit, Volume Discounts Are By SKU)

ItemBeschreibung
Effective Focal LengthEFL On Axis and EFL versus Field
MTF through focus
MTF versus field
MTF versus spatial frequency		MTF measurements using Photopic Eye at Infinity conjugate
9 points along 3 azimuts
Verzerrung 21 points along one axis
Lateral Chromatic Aberration480nm, 546nm, 644nm in one chart
Longitudinal Chromatic Aberration480nm, 546nm, 644nm in one chart.
AstigmatismMTFS vs MTFT surface map
Field CurvatureAcross field

Custom Testing Options (On Request, Quote)

Contact us if you have specific test report formats or requirements. We will also test imaging lenses from other companies, but the price is higher. Here are a few items to consider, but this is not a comprehensive list.

ItemBeschreibung
Test PointsHigher Density
Field Maps
MTF through focus
MTF versus field
MTF versus spatial frequency		At single wavelength and/or 850nm and 940nm
Verzerrung 21 points along one axis
Lateral Chromatic Aberration 546nm
Longitudinal Chromatic Aberration850nm and 940nm via Through Focus MTF
Contact Our Team With Your Test Report Request
MTF testing performance.webp__PID:1da3a36d-6974-425c-b67a-cb3ba6e11372
M12-Objektive C-Mount-Objektive.webp__PID:d39df4c6-9351-4eae-9938-992a7c9a721e

Technik & Qualität gesichert

Optische Technik für M12-Objektive.webp__PID:cabadc1d-9038-478a-9ec1-b9515597d704

US Engineering Unterstützung

M12-Objektiv in den USA.webp__PID:de4930ea-2073-44ee-ad75-d40d9d92487e

Einfacher globaler Versand

M12 Lens Manufacturing.webp__PID:7f1f5e48-3df5-4feb-9fa4-5a6210d8de49

Serienreife Produktion

Find M12 lenses by browsing below our using our M12 Lens Calculator with FoV Calculations.

215°@6.8mm M12 Fisheye-Objektiv
215°@6.8mm M12 Fisheye-Objektiv

CIL220-F2.3-M12BNIR

$39.00
$0.00
Details anzeigen
190°@6.4mm Fisheye M12 Lens
190°@6.4mm Fisheye M12 Lens

CIL281-F1.8-M12A650

$59.00
$0.00
Details anzeigen
Weitwinkelobjektiv 4mm M12
Weitwinkelobjektiv 4mm M12

CIL339-F1.6-M12B640

$109.00
$0.00
Details anzeigen
No Distortion 3.2mm M12 Lens
No Distortion 3.2mm M12 Lens

CIL034-F2.3-M12A660

$39.00
$0.00
Details anzeigen
Verzeichnungsfreies 6mm M12-Objektiv
Verzeichnungsfreies 6mm M12-Objektiv

CIL062-F2.8-M12A650

$19.00
$0.00
Details anzeigen
IR-korrigiertes 12mm M12-Objektiv
IR-korrigiertes 12mm M12-Objektiv

CIL122-F2.0-M12A650

$59.00
$0.00
Details anzeigen
Teleobjektiv 35mm M12
Teleobjektiv 35mm M12

CIL350-F2.4-M12A650

$59.00
$0.00
Details anzeigen
Telephoto 50mm M12 Objektiv
Telephoto 50mm M12 Objektiv

CIL051-F2.8-M12ANIR

$79.00
$0.00
Details anzeigen
Q: What is an M12 lens (S-mount lens)?

Answer: An M12 lens is a compact lens with a 12mm thread diameter, often called an S-mount lens. These lenses screws into a camera M12 lens mount and are easy to use. These lenses are used in board-level cameras for embedded vision systems. M12 lenses are smaller than C/CS-mount lenses, making them ideal for space-constrained applications like robotics​.

Q: What cameras can I use M12 lenses with?

A: There are many embedded vision cameras and AI cameras that are compatible with M12 lenses. As long as camera's lens holder is compatible with the mechanical dimensions of the lens, the lens should focus! Please make sure to match the image circle, FoV, and resolution.


F: Wie fokussiert man ein M12-Objektiv?

Answer: Use focus targets, then slowly thread the lens while displaying a video. Go past focus, then come back to focus. You can read our full article on how to focus camera lenses.

Suchen Sie nach Empfehlungen, wissen Sie nicht, wo Sie anfangen sollen, oder möchten Sie Anpassungen besprechen? Kontaktieren Sie unsere in den USA ansässigen Optik-Ingenieure.

Rufen Sie uns an unter +1 (858) 333-7325
Videoanrufe vereinbaren
