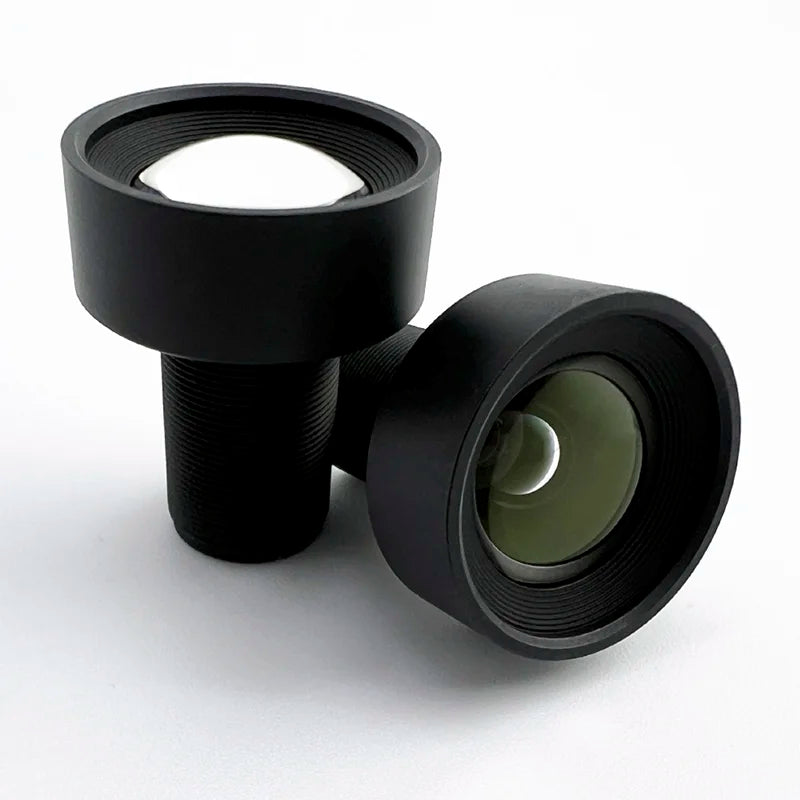

IR Corrected 9mm M12 Lens
The CIL092 is an IR Corrected 9mm M12 lens for up to 1/1.7"+ 10-14MP sensors such as the IMX678 and IMX676. The minimal longitudinal aberration and high resolution make this lens unique across the industry.
In stock — orders before 12 PM PST ship same day
Merkmale des Objektivs
Good MTF
Suitable for 1.4um up to 7.0mm image circle and 2.0um to 10mm image circle.
Large Image circle
Greater than 50% relative illumination at 10mm image circle.
Tabelle der optischen und mechanischen Spezifikationen
| Objektiv Parameter | Leistung Detail |
|---|---|
| Teil Nummer | CIL092 |
| EFL | 9.1 |
| F# | 2.6 |
| Auflösung | 10-12MP (1.85um) |
| Sichtfeld | 55° @ 9.3mm image circle — Calculate FoV for your sensor |
| Bildkreis | 9.2mm Deisgn Image Circle 10.0mm Max Image Circle |
| Verzerrung | -3.7% Rectilin. |
| Gewicht | / |
| IR-Cut-Off-Filter | P/N With: CIL092-F2.6-M12ABR650 P/N Without: CIL092-F2.6-M12ANIR |
| Bauwesen | Alles Glas |
Mechanische Varianten
| Variante | Beschreibung |
|---|---|
| M12A | BBAR on L1S1, no ingress protection |
Mechanisches Layout
Tabelle zur mechanischen Kompatibilität der Kamera*
| Kamera/Mount | Kompatibilität |
|---|---|
| Commonlands CLA024 | CLA024 |
| e-con Systems S-Mount | 13mm tall holder |
| Allied Vision Alvium S-Montage | Ja |
| FLIR Blackfly S Karte | Ja |
| iDS uEye LE | Rev1.1: Ja, Rev1.2: Ja |
| Die Bildgebungsquelle M12 | Ja |
| Basler Dart S-Mount | Ja |
*Nur mechanische Kompatibilität, unter der Annahme, dass der Standard M12x0,5 Objektivanschluss vom Kamerahersteller bereitgestellt wird. Bitte prüfen Sie die optische Kompatibilität separat.
Frequently asked questions
What sensors work with the CIL092 9mm M12 lens?
The CIL092 supports 1/1.7 inch sensors including the Sony IMX676 and IMX678, resolving 10–12MP at 1.85μm pixel pitch across the 9.2mm design image circle.
How much distortion does the CIL092 have?
The CIL092 has -3.7% rectilinear distortion measured at the 9.3mm image circle. For many machine vision applications, this is low enough to skip software distortion correction entirely.
Is the CIL092 IR corrected for day/night imaging?
Yes. The CIL092 is IR corrected to minimize longitudinal chromatic aberration across visible and near-IR wavelengths. Order CIL092-F2.6-M12ABR650 for daylight with a 650nm IRC filter, or CIL092-F2.6-M12ANIR for NIR-sensitive applications.
What M12 lens holders fit the CIL092?
The Commonlands CLA024 lens holder is the recommended mount. e-con Systems boards need a 13mm tall holder. FLIR Blackfly S, Allied Vision Alvium, iDS uEye LE, The Imaging Source, and Basler Dart cameras accept the CIL092 directly.
Does the CIL092 ship same day from the US?
Yes. Orders placed before 12 PM PST ship same day from Commonlands in San Diego, California.
Can I get MTF data and .STP files for the CIL092?
Yes. Contact engineering@commonlands.com for Trioptics MTF test reports and .STP 3D model files for the CIL092.
