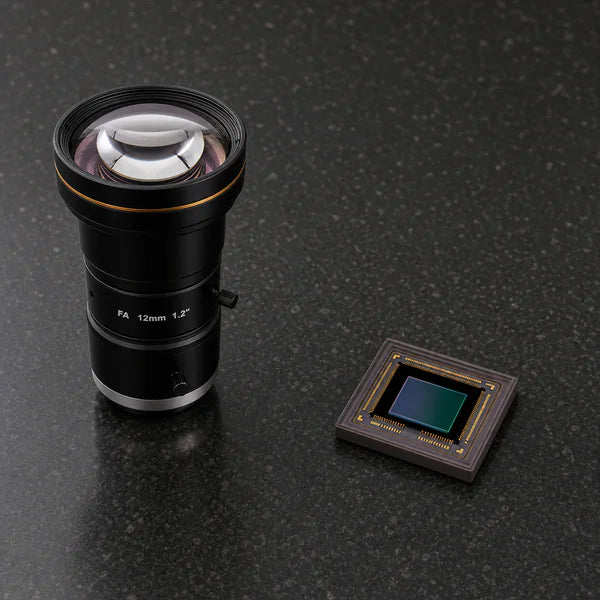

Sony IMX548 · 5.1MP 1/1.8" global-shutter CMOS image sensor
IMX548 Sensor Specifications & Compatible M12 and C-Mount Lenses
IMX548 is a Sony 1/1.8" global-shutter CMOS image sensor in the Pregius S family for distortion-free machine vision. It delivers 5.1 MP at 2464x2064 on 2.74 um pixels across an 8.81 mm diagonal at 114.8 fps over SLVS. Commonlands matches M12 Lenses to its 8.81 mm image circle with the calculated horizontal, vertical, and diagonal field of view, and offers C-Mount Lenses for the same sensor.
IMX548 specifications
| Part number | IMX548 |
|---|---|
| Hersteller | Sony |
| Family | Pregius S |
| Beschluss | 2464 × 2064 (5,1 MP) |
| Optisches Format | 1/1,8" |
| Active area | 6.75 × 5.66 mm |
| Sensor diagonal | 8.81 mm |
| Pixelgröße | 2,74 µm |
| Verschluss | Weltweit |
| Maximale Bildrate | 114,8 fps |
| Schnittstelle | SLVS |
| Color / mono | Color / Mono |
Manufacturer datasheet: Sony IMX548 product page
Compatible Commonlands Lenses for the IMX548 with Calculated Field of View
Each field of view below is calculated for the IMX548 active area (6.75 × 5.66 mm) from Commonlands’ per-lens field-of-view data, which reflects each lens’s real distortion rather than a focal-length-only estimate. Alongside the horizontal, vertical, and diagonal field of view, each row lists the lens aperture (F#), distortion, ingress protection, total track length (TTL), and rated resolution, so you can shortlist on optics and mechanics in one pass. Coverage shows whether the lens image circle covers the 8.81 mm sensor diagonal. Only lenses that cover the full diagonal are listed. Run exact working-distance and object-size numbers through the field of view calculator.
Engineering picks for the IMX548
- Best ~30° HFoV: 12mm C-Mount Lens (CIL552) (12 mm, f/2.8). Why: the closest covering option to 30° horizontal, chosen for tight inspection framing and long read ranges. Field of view on the IMX548: 31° H × 27° V (40° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~60° HFoV: Low Distortion 5.9mm M12 Lens (CIL059) (5.9 mm, f/1.7). Why: the closest covering option to 60° horizontal, chosen for general-purpose machine-vision framing. Field of view on the IMX548: 61° H × 52° V (76° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best ~120° HFoV: Wide-Angle 3.5mm M12 Lens (CIL334) (3.5 mm, f/2.2). Why: the closest covering option to 120° horizontal, chosen for wide navigation and room-scale coverage. Field of view on the IMX548: 116° H × 96° V (159° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Lowest distortion: Low Distortion 4.2mm M12 Lens (CIL042) (4.2 mm, f/1.9). Why: measured -1% TV distortion, the flattest image among covering lenses. Field of view on the IMX548: 78° H × 68° V (93° diagonal). The image circle covers the full sensor (verified 2026-07-02).
- Best low light: 8mm C-Mount Lens (CIL521) (8 mm, f/1.5). Why: the fastest covering aperture (f/1.5), which collects the most light per pixel. Field of view on the IMX548: 46° H × 39° V (58° diagonal). The image circle covers the full sensor (verified 2026-07-02).
Every covering option below comes from the M12 Lens collection or the C-Mount Lens collection, from 1.8 mm to 100 mm focal length, spanning 4° to 215° horizontal field of view on the IMX548.
| Commonlands Lens | Focal Length | Montage | F# | Horizontal FoV | Vertical FoV | Diagonal FoV | Coverage |
|---|---|---|---|---|---|---|---|
| Fisheye 1.8mm M12 Lens (CIL220) | 1.8 mm | M12 | f/2.3 | 215° | 180° | 217° | Circular image |
| Fisheye 2.4mm M12 Lens (CIL324) | 2.4 mm | M12 | f/1.9 | 183° | 146° | 200° | Circular image |
| Low Distortion 3mm M12 Lens (CIL030) | 3 mm | M12 | f/2.1 | 102° | 90° | 119° | Covers |
| Fisheye 3.1mm M12 Lens (CIL231) | 3.1 mm | M12 | f/1.9 | 132° | 108° | 181° | Covers |
| Wide-Angle 3.5mm M12 Lens (CIL334) | 3.5 mm | M12 | f/2.2 | 116° | 96° | 159° | Covers |
| Wide-Angle 3.9mm M12 Lens (CIL339) | 3.9 mm | M12 | f/1.6 | 101° | 84° | 132° | Covers |
| Wide-Angle 4mm M12 Lens (CIL340) | 4 mm | M12 | f/2 | 97° | 81° | 126° | Covers |
| 4mm C-Mount Lens (CIL529) | 4 mm | C-Mount | f/2.8 | 83° | 72° | 99° | Covers |
| Low Distortion 4.2mm M12 Lens (CIL042) | 4.2 mm | M12 | f/1.9 | 78° | 68° | 93° | Covers |
| Wide-Angle 4.5mm M12 Lens (CIL344A) | 4.5 mm | M12 | f/2.7 | 87° | 73° | 115° | Covers |
| 4.9mm C-Mount Lens (CIL505) | 4.9 mm | C-Mount | f/2.2 | 80° | 67° | 106° | Covers |
| Low Distortion 5.2mm M12 Lens (CIL052) | 5.2 mm | M12 | f/3.4 | 66° | 57° | 81° | Covers |
| Wide-Angle 5.8mm M12 Lens (CIL358) | 5.8 mm | M12 | f/1.9 | 70° | 58° | 95° | Covers |
| Low Distortion 5.9mm M12 Lens (CIL059) | 5.9 mm | M12 | f/1.7 | 61° | 52° | 76° | Covers |
| Low Distortion 6.2mm M12 Lens (CIL062) | 6.2 mm | M12 | f/2.8 | 57° | 49° | 71° | Covers |
| 8mm C-Mount Lens (CIL521) | 8 mm | C-Mount | f/1.5 | 46° | 39° | 58° | Covers |
| 8.1mm M12 Lens (CIL083) | 8.1 mm | M12 | f/2.8 | 45° | 38° | 57° | Covers |
| 8.2mm M12 Lens (CIL085) | 8.2 mm | M12 | f/3 | 45° | 38° | 57° | Covers |
| 8.5mm C-Mount Lens (CIL508) | 8.5 mm | C-Mount | f/2.4 | 44° | 37° | 56° | Covers |
| 9.1mm M12 Lens (CIL092) | 9.1 mm | M12 | f/2.6 | 41° | 35° | 53° | Covers |
| Telephoto 12mm M12 Lens (CIL122) | 12 mm | M12 | f/2 | 32° | 27° | 42° | Covers |
| 12mm C-Mount Lens (CIL552) | 12 mm | C-Mount | f/2.8 | 31° | 27° | 40° | Covers |
| Telephoto 14.2mm M12 Lens (CIL142) | 14.2 mm | M12 | f/2.6 | 27° | 23° | 34° | Covers |
| Telephoto 16mm M12 Lens (CIL160) | 16 mm | M12 | f/1.9 | 24° | 20° | 31° | Covers |
| 16mm C-Mount Lens (CIL553) | 16 mm | C-Mount | f/2.8 | 24° | 20° | 31° | Covers |
| Telephoto 21.6mm M12 Lens (CIL121) | 21.6 mm | M12 | f/2.8 | 18° | 15° | 23° | Covers |
| Telephoto 25mm M12 Lens (CIL250) | 25 mm | M12 | f/2 | 15° | 13° | 20° | Covers |
| 25mm C-Mount Lens (CIL554) | 25 mm | C-Mount | f/2.6 | 15° | 13° | 20° | Covers |
| Telephoto 35mm M12 Lens (CIL350) | 35 mm | M12 | f/2.4 | 11° | 9° | 14° | Covers |
| 35mm C-Mount Lens (CIL555) | 35 mm | C-Mount | f/2.6 | 11° | 9° | 14° | Covers |
| Telephoto 50mm M12 Lens (CIL051) | 50 mm | M12 | f/2.8 | 8° | 6° | 10° | Covers |
| 50mm C-Mount Lens (CIL556) | 50 mm | C-Mount | f/2.8 | 8° | 6° | 10° | Covers |
| Telephoto 75mm M12 Lens (CIL076) | 75 mm | M12 | f/3.4 | 5° | 4° | 7° | Covers |
| 75mm C-Mount Lens (CIL557) | 75 mm | C-Mount | f/3 | 5° | 4° | 7° | Covers |
| Telephoto 100mm M12 Lens (CIL100) | 100 mm | M12 | f/3.6 | 4° | 3° | 5° | Covers |
Covers in the table means the lens image circle is at least as large as the 8.81 mm sensor diagonal, so the corners are not cropped. Need a focal length or coverage that is not listed here? Ask our engineers to confirm a match.
How to choose a lens for the IMX548
Start from the field of view your application needs, then read across to the focal length that produces it on the IMX548. Confirm the lens image circle covers the 8.81 mm diagonal so the corners are not cropped, and check the lens resolution is rated for 5.1 MP or higher so it resolves the 2.74 µm pixels. For exact working-distance and object-size numbers, run the figures through the Commonlands field of view calculator.
Sourcing a camera module around the IMX548? Commonlands manufactures the M12 Lenses and C-Mount Lenses above and ships from San Diego, with same-day shipping on in-stock lenses ordered by 12 PM PST. We also design and build custom MIPI CSI-2 camera modules that integrate the lens, the IMX548 sensor, and the carrier board, available from 1,000 units per year, and assemble consigned IMX548 boards with Commonlands lenses in our San Diego ISO 6 cleanroom from 100 to 100,000 units per year. Talk to an applications engineer.
Related guides and tools
IMX548 lens and camera module FAQ
What lens fits the IMX548 sensor?
Commonlands M12 Lenses and C-Mount Lenses whose image circle covers the IMX548’s 8.81 mm diagonal fit the sensor. The table above lists each compatible lens with its calculated horizontal, vertical, and diagonal field of view on the IMX548 active area (6.75 × 5.66 mm).
What is the IMX548 sensor size?
The IMX548 is a 1/1.8" format sensor with a 6.75 × 5.66 mm active area and a 8.81 mm diagonal, built on 2.74 µm pixels at 2464x2064 resolution.
Does Commonlands build a custom MIPI camera module for the IMX548?
Yes. Commonlands designs and builds custom MIPI CSI-2 camera modules that integrate the lens, the IMX548 sensor, and the carrier board, available from 1,000 units per year with active lens-to-sensor alignment and 100% MTF testing. Consigned assembly of your IMX548 boards with Commonlands lenses runs from 100 to 100,000 units per year in our San Diego ISO 6 cleanroom. Talk to an applications engineer to scope a module.
