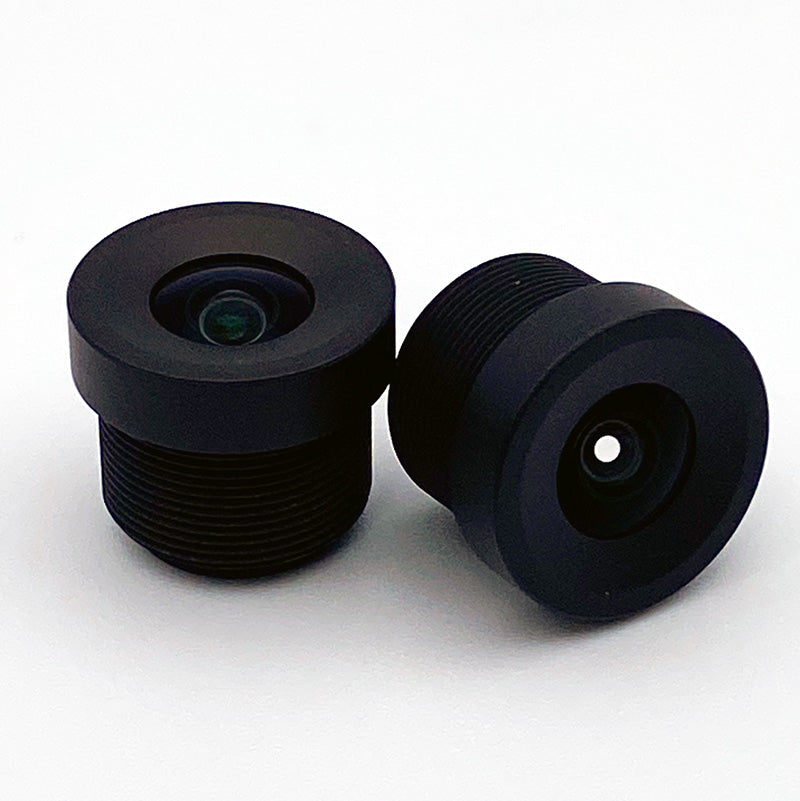

Stereographic M12 Lens for up to 1/2.5" sensors such as MT9P001 and OV4689
Kleines 2,5 mm M12-Objektiv
In stock — orders before 12 PM PST ship same day
Merkmale des Objektivs
Compact Form Factor
A small size for lightweight or hidden applications
Stereographic Distortion
Create an image with limited distortion and natural view.
Tabelle der optischen und mechanischen Spezifikationen
| Objektiv Parameter | Leistung Detail |
|---|---|
| Teil Nummer | CIL825 |
| EFL | 2.5 |
| F# | 2.4 |
| Auflösung | 6MP, 2.2μm |
| Sichtfeld | 115° @ 6.4mm image circle — Calculate FoV for your sensor |
| Bildkreis | 6,4 mm |
| Verzerrung | -11% TV (4:3) @ 6.0mm |
| Gewicht | 4g |
| IR-Cut-Off-Filter | NIR |
| Bauwesen | Hybrid Glass/Plastic, with AL6061 Barrel |
Mechanische Varianten
| Variante | Beschreibung |
|---|---|
| M12A | No Ingress Protection, BBAR on Lens 1 Surface 1, AL6061 Cap+Barrel, Short Barrel |
| M12B | No Ingress Protection, BBAR on Lens 1 Surface 1, AL6061 Cap+Barrel, Long Barrel |
Mechanisches Layout
Tabelle zur mechanischen Kompatibilität der Kamera*
| Kamera/Mount | Kompatibilität |
|---|---|
| Commonlands CLA018 | 6mm-9mm tall holder |
| e-con Systeme / Standard S-Mount | Nein |
| Allied Vision Alvium S-Montage | Nein |
| FLIR Blackfly S Karte | Rev1.1: Nein, Rev1.2: Nein |
| iDS uEye LE | Nein |
| Die Bildgebungsquelle M12 | Please submit inquiry to Basler |
| Basler Dart S-Mount | — |
*Nur mechanische Kompatibilität, unter der Annahme, dass der Standard M12x0,5 Objektivanschluss vom Kamerahersteller bereitgestellt wird. Bitte prüfen Sie die optische Kompatibilität separat.
Frequently asked questions
What sensor format is CIL825 designed for?
CIL825 is specified for sensors up to 1/2.5" and uses a 6.4mm image circle.
How much distortion does CIL825 have?
The lens is specified at -11% TV distortion in 4:3 format at a 6.0mm image height.
Is CIL825 a fisheye lens?
Not in the usual full-fisheye sense. It is a 2.5mm wide-angle lens with stereographic rendering and a 115° field of view, so the image looks more natural than a typical fisheye.
What resolution can CIL825 support?
It is rated for 6MP imaging with 2.2μm pixel sizes.
How heavy is CIL825?
The listed weight is 4g, which is useful for lightweight board cameras and compact housings.
What mechanical versions are available for CIL825?
Two versions are listed: M12A with a short barrel and M12B with a long barrel. Both use an AL6061 cap and barrel and are listed without ingress protection.
