Low Distortion IR Corrected 1.8mm Wide-Angle M12 Lens for Surveillance
Low Distortion IR Corrected 1.8mm M12 Lens

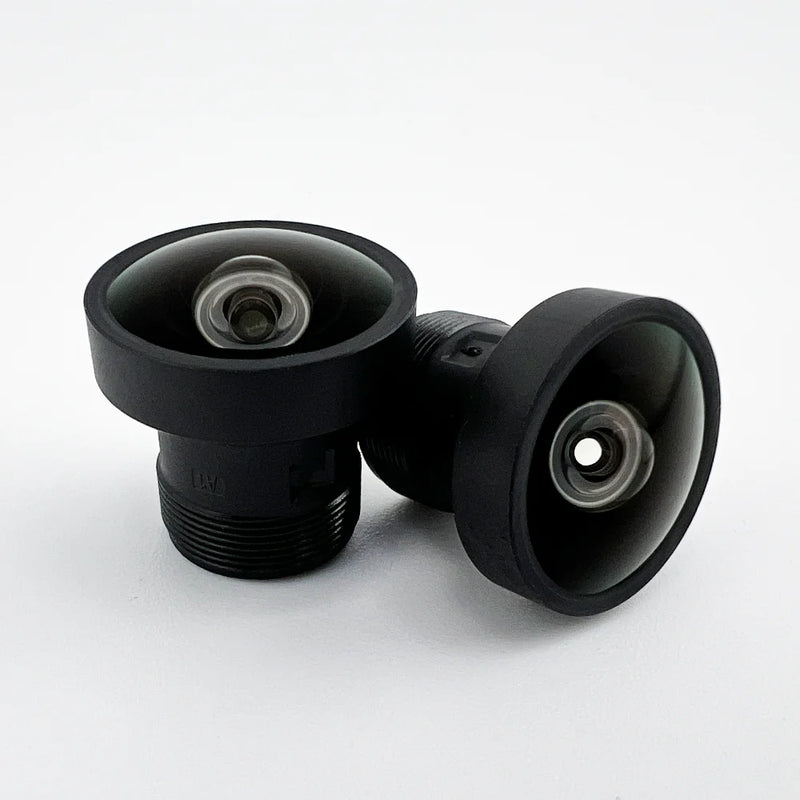

The CIL019 is a 1.8mm F/1.6 Wide Angle IR Corrected S-Mount with Low Distortion. The lens is suitable for up to 5MP 1/2.7" sensors such as the IMX662. The optical characteristics make this lens ideal for surveillance applications. The barrel is plastic and the lens cannot be ingress protected; filters must also be mounted within the lens holder.
Merkmale des Objektivs
Wide FoV
One of the widest angle low distortion M12 lenses on the market.
IR Corrected
Less than 7µm MBFL shift from VIS to 850nm for precise IR correction.
Geringe Verzerrung
Low distortion keeps objects looking natural — straight lines stay straight.
Tabelle der optischen und mechanischen Spezifikationen
| Objektiv Parameter | Leistung Detail |
|---|---|
| Teil Nummer | CIL019 |
| EFL | 1.8 |
| F# | 1.6 |
| Auflösung | 2-3MP |
| Sichtfeld | 87° — Calculate FoV for your sensor |
| Bildkreis | 6.6mm |
| Verzerrung | +48% F-θ |
| Bauwesen | 2G5P |
Mechanische Varianten
| Variante | Beschreibung |
|---|---|
| M12P | No Ingress Protection, BBAR on Lens 1 Surface 1, AL6061 Cap, Plastic Barrel |
Mechanisches Layout
Tabelle zur mechanischen Kompatibilität der Kamera*
| Kamera/Mount | Kompatibilität |
|---|---|
| Commonlands CLA018 | CLA018 |
| e-con Systems S-Mount | 9mm-13mm tall holder |
| Allied Vision Alvium S-Montage | Ja |
| FLIR Blackfly S Karte | Ja |
| iDS uEye LE | Rev1.1: Yes, Rev1.2: Must use PN ending C-NO |
| Die Bildgebungsquelle M12 | Ja |
| D3 Kameramodule | Kontakt zu D3 Engineering |
*Nur mechanische Kompatibilität, unter der Annahme, dass der Standard M12x0,5 Objektivanschluss vom Kamerahersteller bereitgestellt wird. Bitte prüfen Sie die optische Kompatibilität separat.
Frequently asked questions
What sensors is the CIL019 1.8mm IR corrected M12 lens compatible with?
The CIL019 is designed for 1/2.7\" sensors at 2-3MP, including the Sony IMX662. Its 6.6mm image circle fully covers this format.
What IR correction performance does the CIL019 provide?
The CIL019 holds focal shift under 7 microns MBFL from visible to 850nm NIR. Day/night cameras that alternate between a 650nm cut filter and open NIR mode maintain sharp focus without mechanical refocusing.
Why does the CIL019 spec show +48% F-theta if it is called low distortion?
F-theta distortion and TV distortion are different measurements. +48% F-θ describes how angular field position maps to image height — not the same as barrel or pincushion distortion. The 'low distortion' claim refers to conventional TV distortion, which is comparatively low for a wide-angle lens at this focal length.
Can the CIL019 be used with external optical filters?
Yes, but filters must be mounted in the lens holder, not inside the lens body. The M12P plastic barrel does not support internal filter installation.
Is the CIL019 M12P variant ingress protected?
No. The M12P variant has no ingress protection. Outdoor or humid deployments require an external housing or sealed enclosure.
What lens holder does the CIL019 require?
The CIL019 requires a standard 9mm-13mm tall M12x0.5 lens holder. The Commonlands CLA018 is the recommended compatible mount. iDS uEye LE Rev1.2 users must order the PN ending in C-NO.
