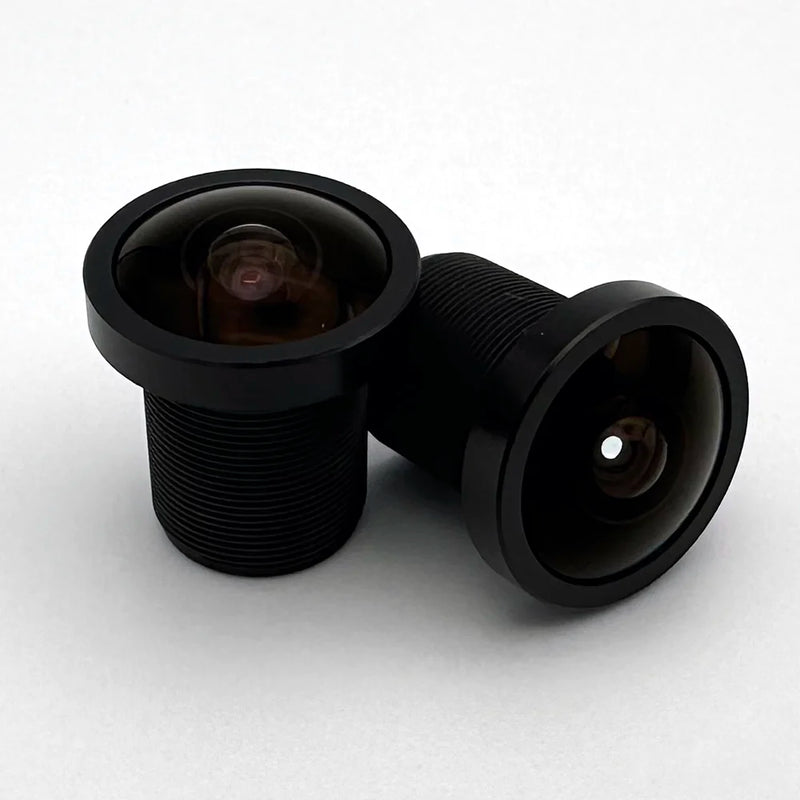

F-theta M12 Objektiv für | 180°@7.5mm und 5MP bis zu 2/3" wie ISX031
Weitwinkelobjektiv 2,5 mm M12
In stock — orders before 12 PM PST ship same day
Merkmale des Objektivs
Ganzglas Ganzmetall
Thermische Stabilität aufgrund der Ganzglas-Ganzmetall-Glaskonstruktion.
IP67 Bewertung
Setzen Sie das Objektiv bei Außenanwendungen direkt den Elementen aus.
F-Theta-Verzerrung
Konsistente Winkelauflösung über das gesamte Sichtfeld.
Tabelle der optischen und mechanischen Spezifikationen
| Objektiv Parameter | Leistung Detail |
|---|---|
| Teil Nummer | CIL926 |
| EFL | 2.5 |
| F# | 2.4 |
| Auflösung | 5MP, 2μm |
| Sichtfeld | 172° @ 7.4mm image circle — Calculate FoV for your sensor |
| Bildkreis | 7,4 mm |
| Verzerrung | -1,4% F-Θ @ |
| Gewicht | 12g |
| IR-Cut-Off-Filter | NIR |
| Bauwesen | Ganzglas, Aluminium |
Mechanische Varianten
| Variante | Beschreibung |
|---|---|
| M12A | IP67, BBAR auf Linse 1 Oberfläche 1, Metallkappe+Trommel |
Mechanisches Layout
Tabelle zur mechanischen Kompatibilität der Kamera*
| Kamera/Mount | Kompatibilität |
|---|---|
| Commonlands CLA018 | 9mm-13mm hohe Halterung |
| e-con Systeme / Standard S-Mount | Ja |
| Allied Vision Alvium S-Montage | Ja |
| FLIR Blackfly S Karte | Rev1.1: Nein, Rev1.2: Nein |
| iDS uEye LE | Ja |
| Die Bildgebungsquelle M12 | Ja |
| Basler Dart S-Mount | — |
*Nur mechanische Kompatibilität, unter der Annahme, dass der Standard M12x0,5 Objektivanschluss vom Kamerahersteller bereitgestellt wird. Bitte prüfen Sie die optische Kompatibilität separat.
Frequently asked questions
What sensor size does CIL926 cover?
CIL926 is specified for sensors up to 1/2.5" and uses a 7.4mm image circle.
What is the distortion profile of CIL926?
It is specified as an F-theta lens with about -1.4% F-θ distortion, which is low for a 172° field of view.
What resolution is CIL926 designed to support?
The lens is rated for 5MP imaging with 2μm pixels.
Is CIL926 built for outdoor or exposed use?
Yes. The listed mechanical version is IP67, so it is intended for applications that need dust and water resistance.
Why does the all-glass, aluminum construction matter?
All-glass optics and an aluminum housing generally hold focus and alignment more consistently across temperature changes than lighter mixed-material designs.
How heavy is CIL926?
The listed weight is 12g.
