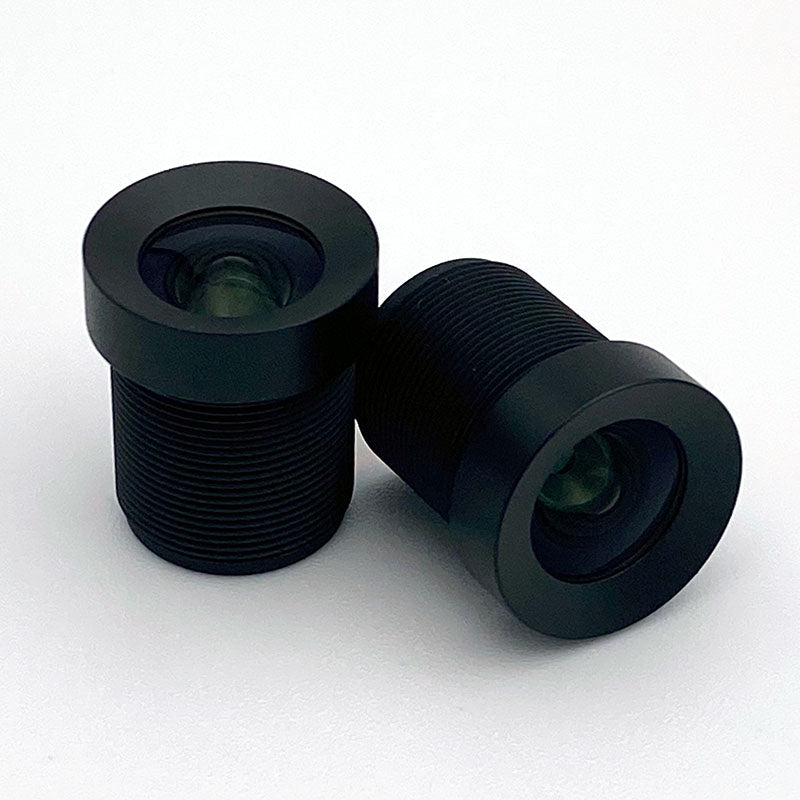

Low Distortion 4.5mm M12 Lens\|For up to 5MP sensors with 2.2um pixels such as MT9P031
Low Distortion 4.5mm Lens
In stock — orders before 12 PM PST ship same day
Tabelle der optischen und mechanischen Spezifikationen
| Objektiv Parameter | Leistung Detail |
|---|---|
| Teil Nummer | CIL045 |
| EFL | 4.5 |
| F# | 3.5 |
| Auflösung | 5MP, 2.2μm |
| Sichtfeld | 68° @ 6.0mm image circle — Calculate FoV for your sensor |
| Bildkreis | 7,2 mm |
| Verzerrung | -0.9% Rectilinear, +0.4% TV |
| Gewicht | 5g |
| IR-Cut-Off-Filter | P/N With: CIL045-F3.5-M12A650 P/N Without: CIL045-F3.5-M12ANIR |
| Bauwesen | 3G2P |
Mechanische Varianten
| Variante | Beschreibung |
|---|---|
| M12A | Kein Schutz gegen Eindringen, BBAR auf Linse 1 Oberfläche 1, AL6061 Kappe+Trommel |
Mechanisches Layout
Tabelle zur mechanischen Kompatibilität der Kamera*
| Kamera/Mount | Kompatibilität |
|---|---|
| Commonlands CLA019 | — |
| e-con Systems S-Mount | — |
| Allied Vision Alvium S-Montage | — |
| FLIR Blackfly S Karte | — |
| iDS uEye LE | — |
| Die Bildgebungsquelle M12 | — |
| Basler Dart S-Mount | — |
*Nur mechanische Kompatibilität, unter der Annahme, dass der Standard M12x0,5 Objektivanschluss vom Kamerahersteller bereitgestellt wird. Bitte prüfen Sie die optische Kompatibilität separat.
Frequently asked questions
What sensors does the CIL045 4.5mm M12 lens support?
The CIL045 resolves 5MP at 2.2μm pixel pitch and covers sensors up to 1/1.9 inch format. ON Semi MT9P031 is the primary target. Check field of view at field of view calculator
How much distortion does the CIL045 have?
The CIL045 keeps distortion under 1% in both metrics, with -0.9% rectilinear and +0.4% TV distortion. That is low enough for machine vision measurement and barcode reading.
What is the field of view of the CIL045 on a 1/2.3 inch sensor?
The CIL045 gives 68° field of view at the 6.0mm image circle on 1/2.5 inch sensors. Its 7.2mm total image circle reaches up to 1/1.9 inch format, with vignetting at the edges.
What lens holder works with the CIL045?
The Commonlands CLA019-LCP with 18mm spacing is the recommended holder. e-con Systems boards need a 10-15mm tall holder, and FLIR, Allied Vision, iDS, The Imaging Source, and Basler boards are mechanically compatible.
Does the CIL045 come with an IR cut filter option?
Yes, the CIL045-F3.5-M12A650 includes a 650nm IR cut filter for visible-light use. The CIL045-F3.5-M12ANIR ships without a filter for NIR-sensitive applications.
Does the CIL045 ship same day from the US?
Yes, in-stock CIL045 lenses ship same day from San Diego for orders placed before 12 PM PST. Every unit is 100% MTF tested.
