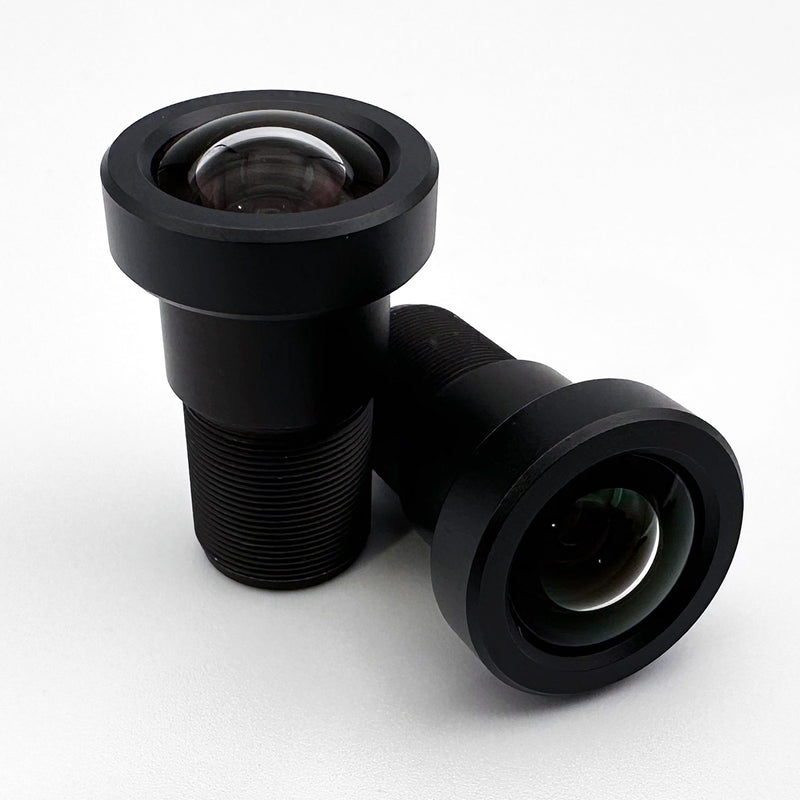

8mm Low Distortion M12 Lens for 8MP 1/1.7" Sensors Such as IMX334 and AR0822
Low Distortion 7.8mm M12 Lens
In stock — orders before 12 PM PST ship same day
Merkmale des Objektivs
Geringe Verzerrung
A high quality low distortion image is great for computer vision
All Glass All-Metal
Good thermal stability with all-glass all-metal construction.
Tabelle der optischen und mechanischen Spezifikationen
| Objektiv Parameter | Leistung Detail |
|---|---|
| Teil Nummer | CIL078 |
| EFL | 7.8 |
| F# | 2.0 |
| Auflösung | 8MP+ |
| Sichtfeld | 60° @ 8.8mm image circle — Calculate FoV for your sensor |
| Bildkreis | 9.2mm+ |
| Verzerrung | -1.1% TV @8.8mm |
| Gewicht | 10.44g |
| IR-Cut-Off-Filter | P/N With: CIL078-F2.0-M12A650; P/N Without: CIL078-F2.0-M12ANI |
| Bauwesen | 9G+IRC with Aluminum Barrel |
Mechanische Varianten
| Variante | Beschreibung |
|---|---|
| M12A | Kein Schutz gegen Eindringen, BBAR auf Linse 1 Oberfläche 1, AL6061 Kappe+Trommel |
| M12B | IP67, BBAR auf Linse 1 Oberfläche 1, AL6061 Kappe+Trommel |
Mechanisches Layout
Tabelle zur mechanischen Kompatibilität der Kamera*
| Kamera/Mount | Kompatibilität |
|---|---|
| e-con Systeme / Standard S-Mount | 8mm-15mm tall holder |
| Allied Vision Alvium S-Montage | Ja |
| FLIR Blackfly S Karte | Ja |
| iDS uEye LE | Rev1.1: Ja, Rev1.2: Ja |
| Die Bildgebungsquelle M12 | Ja |
| Basler Dart S-Mount | Ja |
*Nur mechanische Kompatibilität, unter der Annahme, dass der Standard M12x0,5 Objektivanschluss vom Kamerahersteller bereitgestellt wird. Bitte prüfen Sie die optische Kompatibilität separat.
Frequently asked questions
What sensors work with the CIL078 8mm M12 lens?
The CIL078 works with 1/1.7 inch and 1/1.8 inch sensors, including the Sony IMX334, ON Semiconductor AR0822, and Sony IMX226. Its 9.2mm image circle covers those formats with margin.
How much distortion does the CIL078 8mm S-mount lens have?
The CIL078 has -1.1% TV distortion measured at the 8.8mm image circle. That is low enough for barcode scanning, OCR, and dimensional measurement without software distortion correction in many systems.
Can the CIL078 be used for barcode reading and machine vision inspection?
Yes. The combination of low distortion, all-glass construction, and 8MP resolution makes it a solid choice for barcode reading, optical character recognition, dimensional measurement, and automated optical inspection in factory automation.
What is the difference between M12A and M12B (IP67) variants?
M12A is the standard variant. M12B adds IP67 sealing with a weatherproof barrel for outdoor, washdown, or humid environments. Both use the same optical design and accept optional 650nm IR cut filters.
Does the CIL078 8mm M12 lens ship from the United States?
Yes. Commonlands ships all in-stock lenses same day from San Diego, California for orders placed before 12 PM PST.
Are .STP files and mechanical drawings available for the CIL078?
Yes. Mechanical drawings are on the product page. Contact engineering@commonlands.com for .STP 3D model files for CAD integration.
