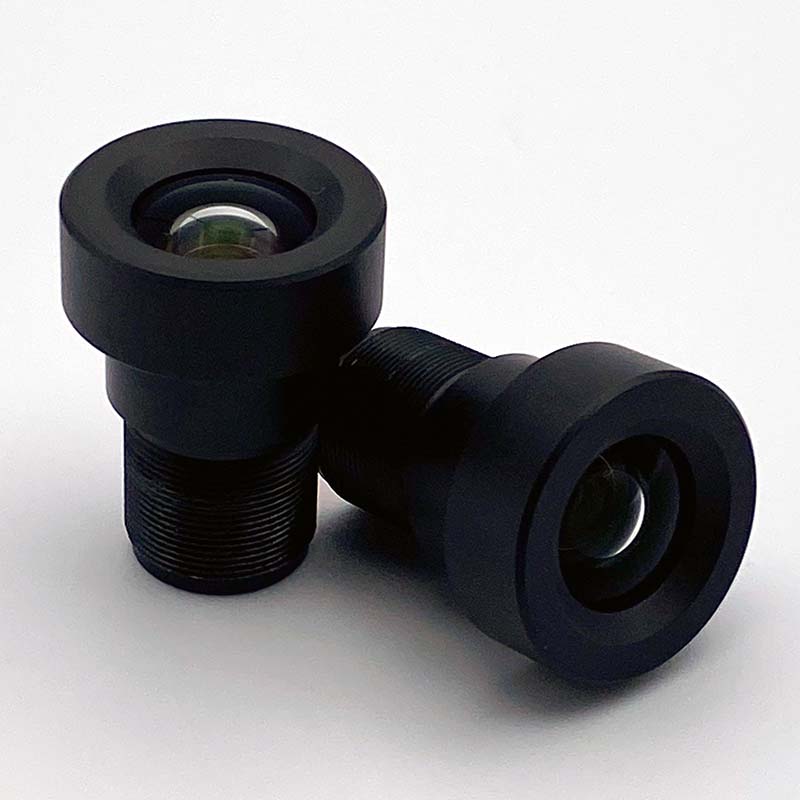

7mm M12 Lens for Board Mount Cameras such as IMX477 and IMX412
Verzeichnungsarmes 6,8-mm-M12-Objektiv
In stock — orders before 12 PM PST ship same day
Merkmale des Objektivs
Geringe Verzerrung
A high quality low distortion image is great for computer vision
All Glass All-Metal
Good thermal stability with all-glass all-metal construction.
Tabelle der optischen und mechanischen Spezifikationen
| Objektiv Parameter | Leistung Detail |
|---|---|
| Teil Nummer | CIL068 |
| EFL | 6.8 |
| F# | 2.5 |
| Auflösung | 12MP, 1.55μm |
| Sichtfeld | 62° @ 8.0mm image circle — Calculate FoV for your sensor |
| Bildkreis | 7.833 |
| Verzerrung | -3% Rectilin. |
| Gewicht | 12g |
| IR-Cut-Off-Filter | P/N With: CIL068-F2.5-M12A650 P/N Without: CIL068-F2.5-M12ANIR |
| Bauwesen | 8G+IRC with Aluminum Barrel |
Mechanische Varianten
| Variante | Beschreibung |
|---|---|
| M12A | Kein Schutz gegen Eindringen, BBAR auf Linse 1 Oberfläche 1, AL6061 Kappe+Trommel |
Mechanisches Layout
Tabelle zur mechanischen Kompatibilität der Kamera*
| Kamera/Mount | Kompatibilität |
|---|---|
| Commonlands CLA019 | — |
| e-con Systems S-Mount | — |
| Allied Vision Alvium S-Montage | — |
| FLIR Blackfly S Karte | — |
| iDS uEye LE | — |
| Die Bildgebungsquelle M12 | — |
| Basler Dart S-Mount | — |
*Nur mechanische Kompatibilität, unter der Annahme, dass der Standard M12x0,5 Objektivanschluss vom Kamerahersteller bereitgestellt wird. Bitte prüfen Sie die optische Kompatibilität separat.
Frequently asked questions
What sensors work with the CIL068 6.8mm M12 lens?
The CIL068 supports 1/1.8 inch and 1/2 inch sensors up to 12MP at 1.55μm pixel pitch. It pairs well with the Sony IMX477 and IMX412 in high-resolution machine vision systems.
How much distortion does the CIL068 have?
The CIL068 has just -3% rectilinear distortion. That is low enough for dimensional measurement, barcode reading, and automated optical inspection without software correction in many setups.
Can the CIL068 be used for barcode reading and machine vision inspection?
Yes. The CIL068 works well for barcode scanning, OCR, dimensional measurement, and AOI because it combines -3% distortion with 12MP resolution. The all-glass 8-element design has the resolving power needed for small feature detection on production lines.
What is the image circle of the CIL068?
The image circle is 7.833mm, which gives clean edge-to-edge illumination on 1/2 inch format sensors. The 62° field of view is specified at the 8.0mm image circle diameter. Plan working distance with our depth of field calculator at depth of field calculator
Does the CIL068 M12 lens ship from the United States?
Yes. Commonlands ships all in-stock lenses same day from San Diego, California for orders placed before 12 PM PST.
Are mechanical drawings and 3D models available for the CIL068?
Yes. 3D STP models and mechanical drawings are available on the product page and by request to engineering@commonlands.com for CAD integration.
