146°@6.6mm Automotive M12 Lens for up to 1/2.7" such as IMX322 and IMX390.

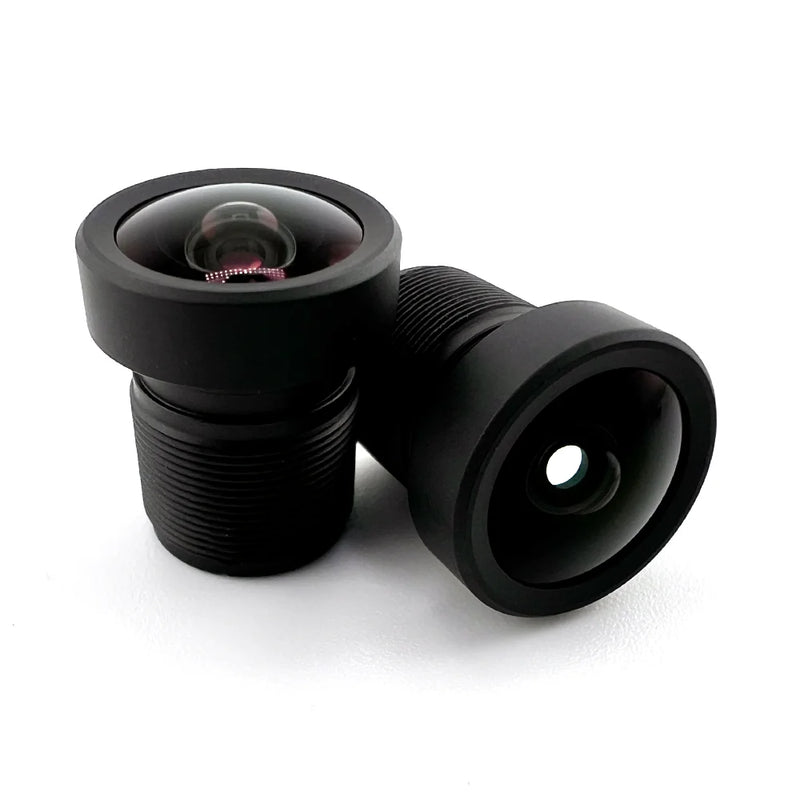

2.9mm Wide Angle M12 Lens
The CIL326 is a fast F/1.4 wide angle M12 lens for up to 3MP 1/2.7" sensors. The low F# and all-glass construction make this lens ideal for low light and in-cabin automotive camera systems.
In stock — orders before 12 PM PST ship same day
Merkmale des Objektivs
164° FoV
Ultra-wide field of view for surround-view applications.
IP67 Rated
Ideal for exterior facing applications requiring water and dust resistance.
Tabelle der optischen und mechanischen Spezifikationen
| Objektiv Parameter | Leistung Detail |
|---|---|
| Teil Nummer | CIL326 |
| EFL | 2.9 |
| F# | 1.45 |
| Auflösung | 2-3MP (2.5um) |
| Sichtfeld | 146° @ 6.6mm image circle — Calculate FoV for your sensor |
| Bildkreis | 6.8mm as designed, 7.2mm Max |
| Verzerrung | -8% F-Θ @ 6.6mm |
| Gewicht | 5.5g |
| IR-Cut-Off-Filter | P/N With: CIL326-F1.4-M12A650 |
| Bauwesen | 7G |
Mechanische Varianten
| Variante | Beschreibung |
|---|---|
| M12A | Kein Schutz gegen Eindringen, BBAR auf Linse 1 Oberfläche 1, AL6061 Kappe+Trommel |
Mechanisches Layout
Tabelle zur mechanischen Kompatibilität der Kamera*
| Kamera/Mount | Kompatibilität |
|---|---|
| Commonlands CLA020 | CLA020 |
| e-con Systems S-Mount | 13mm tall mount |
| Allied Vision Alvium S-Montage | Ja |
| FLIR Blackfly S Karte | Ja |
| iDS uEye XLS | Ja |
| Die Bildgebungsquelle M12 | Ja |
| Basler Dart S-Mount | Ja |
*Nur mechanische Kompatibilität, unter der Annahme, dass der Standard M12x0,5 Objektivanschluss vom Kamerahersteller bereitgestellt wird. Bitte prüfen Sie die optische Kompatibilität separat.
Frequently asked questions
What sensors work with the CIL326 2.9mm M12 lens?
[\"The CIL326 supports 1/2.7\" sensors up to 3MP including the Sony IMX322 and IMX390. The 6.8mm designed image circle covers these formats with margin.\"
How wide is the CIL326 field of view?
The CIL326 delivers 146° field of view at the 6.6mm image circle. Use the calculator at https://commonlands.com/pages/camera-field-of-view-calculator to check horizontal and vertical angles on your sensor.
Is the CIL326 good for automotive surround-view cameras?
\"Yes. The fast F/1.45 aperture and 146° FoV make the CIL326 well suited for automotive surround-view
What is the distortion on the CIL326 M12 lens?
in-cabin monitoring
Does the CIL326 ship same day from the US?
and ADAS applications where low-light performance and wide coverage matter.\"
What lens holder works with the CIL326?
The CIL326 has -8% F-Theta distortion at 6.6mm. This is typical for wide-angle automotive lenses and correctable in most ADAS software pipelines.
