16-mm-C-Mount-Objektiv für Sensoren bis zu 1,1" wie IMX304 und IMX253

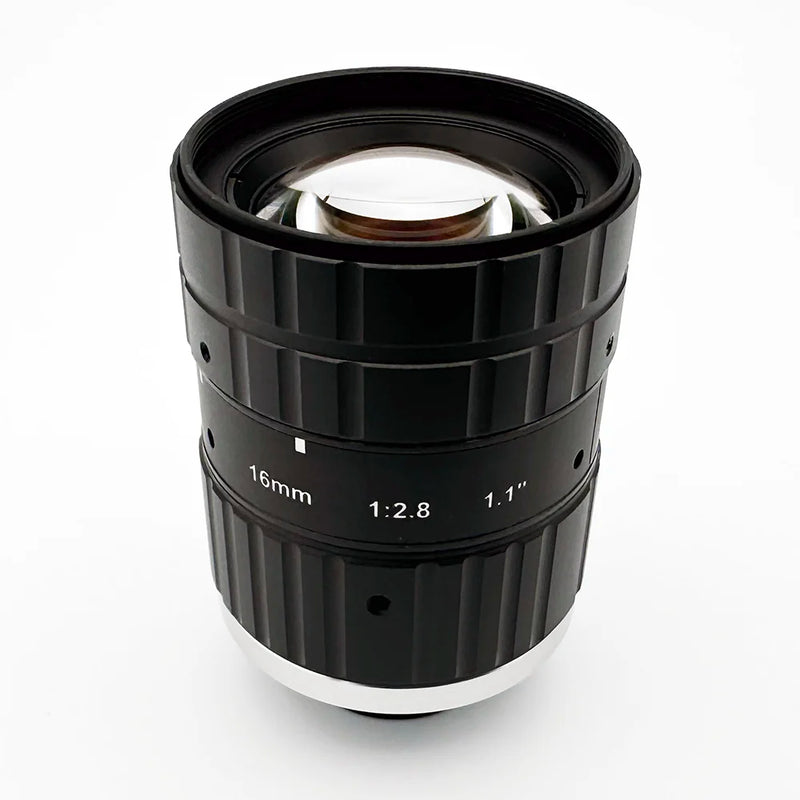

The CIL513 is a 16mm C-mount lens built for 1.1" sensors like the IMX304 and IMX253 at 12MP resolution with 3.45μm pixel pitch. The adjustable aperture runs from F/2.8 to F/16, giving you full control over depth of field without swapping lenses. Focus adjusts from 100mm to infinity.

Distortion is less than -1% from rectilinear at 500mm working distance, measured across the full 17.6mm image circle. That makes the CIL513 a strong pick for factory automation, dimensional measurement, and machine vision inspection where geometric accuracy matters. The 60° field of view at 1.1" format provides a good balance between coverage and magnification for inline inspection stations. Calculate your exact field of view at https://commonlands.com/pages/camera-field-of-view-calculator.

The optical design uses 12 glass elements in 10 groups. At 145g, this is a serious industrial lens. The all-glass construction delivers stable performance across temperature shifts that would cause focus drift in lenses with plastic elements. M35.5x0.5 filter threads accept standard filters for polarization or wavelength selection.

Standard C-mount (1"-32 TPI) threading fits directly onto cameras from FLIR, Basler, Allied Vision, iDS, Lucid Vision, Daheng, and any other manufacturer using the C-mount standard. No adapters needed. Pair the CIL513 with the CIL512 (12mm) for wider coverage or the CIL514 (25mm) for tighter fields on the same sensor platform.

Ships same day from San Diego for orders placed before 12 PM PST. Mechanical drawings and STP files available through the product page. Contact our US-based optical engineers for volume pricing or application guidance on multi-camera inspection systems.
