Small Fisheye M12 Lens for up to 5MP sensors

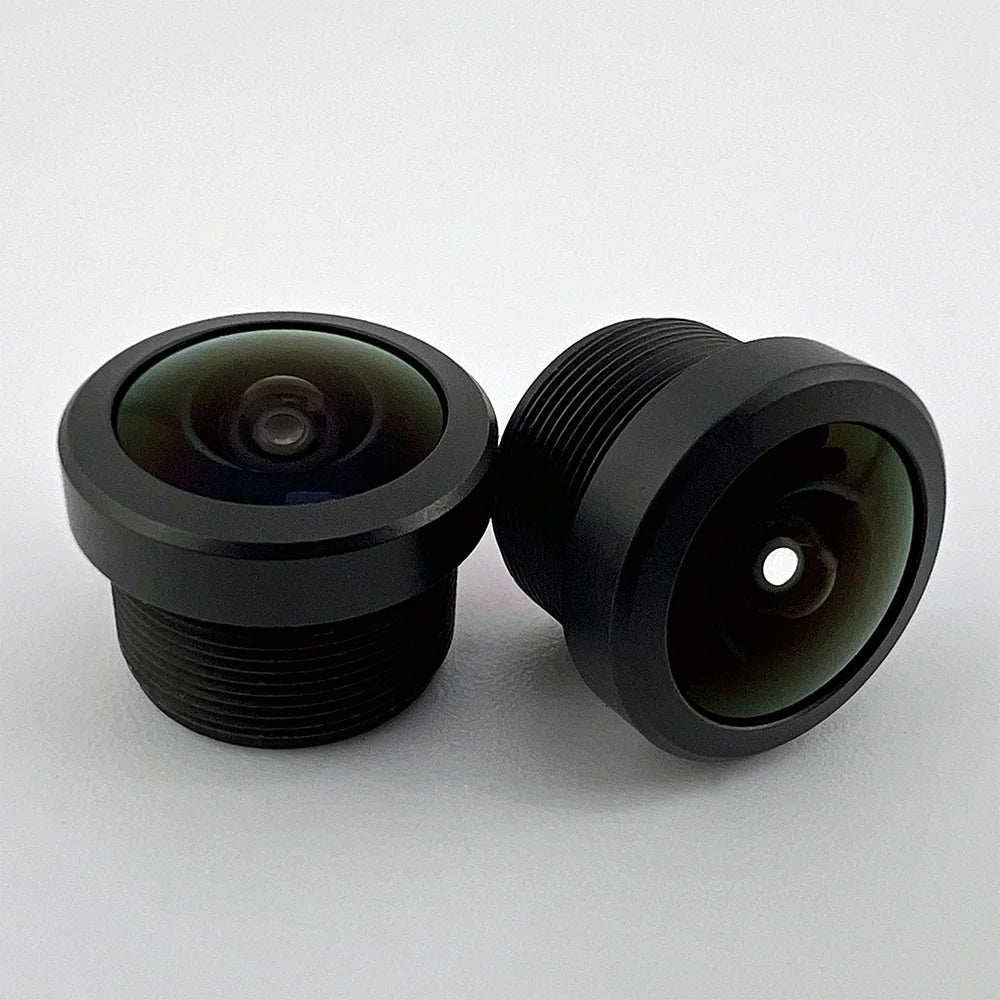

F-Theta 182°@7.1mm M12 Fisheye Lens
The CIL292 is a small M12 S Mount Fisheye Lens for up to 1/2.5" sensors with full coverage. The all-glass design and F-theta distortion is ideal for multi-camera stitching.
In stock — orders before 12 PM PST ship same day
Merkmale des Objektivs
183°
183° FoV at 7.1mm image circle for a circular fisheye on 1/2.7\" sensors.
5MP Auflösung
Low distortion and high MTF suitable for 1.3um pixels.
Tabelle der optischen und mechanischen Spezifikationen
| Objektiv Parameter | Leistung Detail |
|---|---|
| Teil Nummer | CIL292 |
| EFL | 2.3 |
| F# | 2.1 |
| Auflösung | 5MP+ (1.85um) |
| Sichtfeld | 183° @ 7.1mm as designed image circle — Calculate FoV for your sensor |
| Bildkreis | 7.1mm as designed |
| Verzerrung | -3% F-θ |
| Gewicht | 3g |
| IR-Cut-Off-Filter | NIR |
| Bauwesen | 5G1MG |
Mechanische Varianten
| Variante | Beschreibung |
|---|---|
| M12A | IP67, BBAR auf Linse 1 Oberfläche 1, AL6061 Kappe+Trommel |
Mechanisches Layout
Tabelle zur mechanischen Kompatibilität der Kamera*
| Kamera/Mount | Kompatibilität |
|---|---|

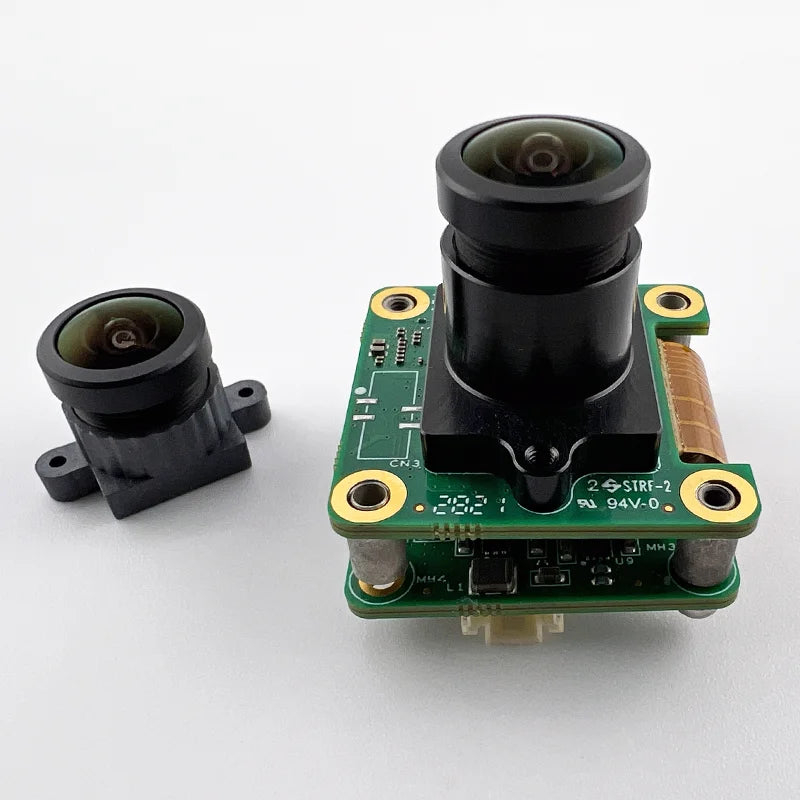

| Commonlands CLA024 | 8mm-15mm hohe Halterung |
| e-con Systeme / Standard S-Mount | Ja |
| Allied Vision Alvium S-Montage | Ja |
| FLIR Blackfly S Karte | Rev1.1: Yes, Rev1.2: Must use PN ending C-NO |
| iDS uEye LE | Ja |
| Die Bildgebungsquelle M12 | Ja |
| Basler Dart S-Mount | — |
*Nur mechanische Kompatibilität, unter der Annahme, dass der Standard M12x0,5 Objektivanschluss vom Kamerahersteller bereitgestellt wird. Bitte prüfen Sie die optische Kompatibilität separat.
Frequently asked questions
What sensor size is CIL292 designed to cover?
CIL292 is listed for sensor formats at or above 1/2.5\" and is designed around a 7.1mm image circle.
Does CIL292 create a circular fisheye image?
Yes. On 1/2.7\" sensors, the 7.1mm designed image circle can produce a circular fisheye image rather than filling the full rectangular frame.
Why does the -3% F-Theta distortion matter?
An F-Theta style mapping keeps angular resolution more even across the field. For CIL292, the specified distortion is -3% F-θ, which is tighter than a conventional fisheye tuned mainly for visual appearance.
What resolution can this lens support?
The lens is specified for 5MP+ imaging with 1.85µm pixels, so it fits higher-density embedded sensors better than older 2MP-class fisheyes.
Is CIL292 suitable for outdoor or exposed cameras?
Yes. The listed mechanical variant is IP67 with an aluminum cap and barrel, so it is better suited to dust and water exposure than a non-sealed indoor lens.
How heavy is CIL292 for compact camera modules?
CIL292 weighs 3g. That low mass helps in small modules where mount loading, vibration, and package height are tightly constrained.
