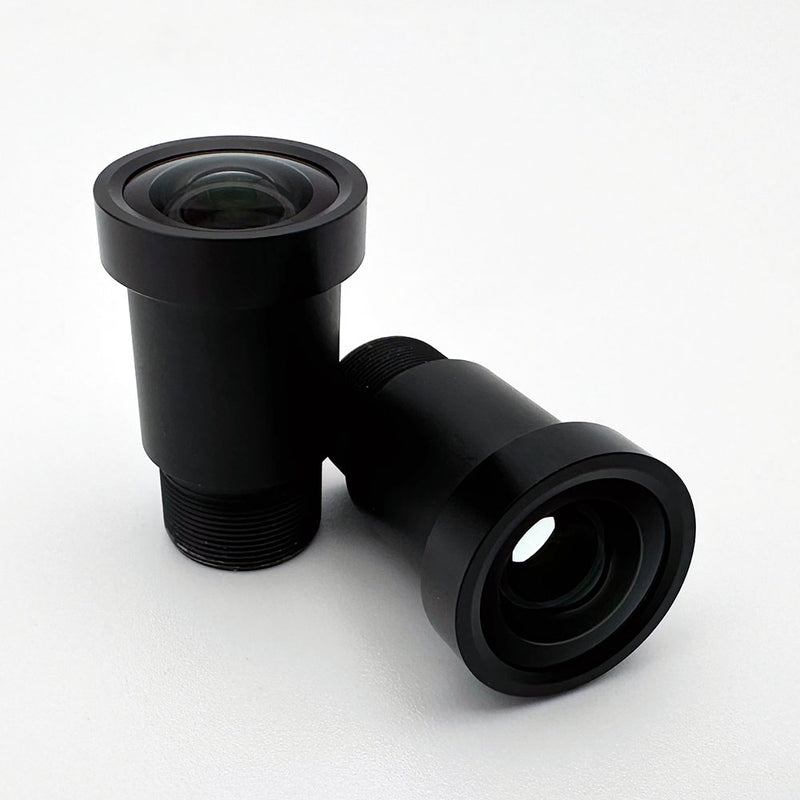

Wide-Angle Automotive 1/1.7" 10-12MP M12 Lens for OX08B40, IMX678, and AR0822
Weitwinkel-Objektiv 6,8 mm M12
In stock — orders before 12 PM PST ship same day
Merkmale des Objektivs
Low F/#
All-glass all-metal design, with F/1.8 for great low light performance.
Low Ghost
Stray light optimized for high dynamic range required in safety critical scenes.
Tabelle der optischen und mechanischen Spezifikationen
| Objektiv Parameter | Leistung Detail |
|---|---|
| Teil Nummer | CIL368 |
| EFL | 6.8 |
| F# | 1.8 |
| Auflösung | 10MP-12MP, 1.85μm |
| Sichtfeld | 80° @ 9.2mm image circle — Calculate FoV for your sensor |
| Bildkreis | 9.2mm |
| Verzerrung | -3.3% F-Θ |
| Gewicht | 11.4g |
| IR-Cut-Off-Filter | P/N With: CIL368-F1.8-M12A650 P/N Without: CIL368-F1.8-M12ANIR |
| Bauwesen | Ganzglas, Aluminium |
Mechanische Varianten
| Variante | Beschreibung |
|---|---|
| M12A | IP69K, BBAR on Lens 1 Surface 1, AL6061 Cap+Barrel |
Mechanisches Layout
Tabelle zur mechanischen Kompatibilität der Kamera*
| Kamera/Mount | Kompatibilität |
|---|---|
| Commonlands CLA024 | CLA024 |
| e-con Systems S-Mount | 10mm - 13mm tall holder |
| Allied Vision Alvium S-Montage | Ja |
| FLIR Blackfly S Karte | Ja |
| iDS uEye LE | Ja |
| Die Bildgebungsquelle M12 | Rev1.1: Ja, Rev1.2: Ja |
| Basler Dart S-Mount | Ja |
*Nur mechanische Kompatibilität, unter der Annahme, dass der Standard M12x0,5 Objektivanschluss vom Kamerahersteller bereitgestellt wird. Bitte prüfen Sie die optische Kompatibilität separat.
Frequently asked questions
What sensors does the CIL368 automotive 7mm M12 lens support?
The CIL368 supports 1/1.7 inch sensors resolving 10-12MP at 1.85μm pixel pitch, including the OX08B40, IMX678, and AR0822. Its 9.2mm image circle fully covers those formats.
How much distortion does the CIL368 have?
The CIL368 has -3.3% F-Theta distortion at the 9.2mm image circle. That is low enough for many ADAS, surround-view, and robotics navigation pipelines to run without software correction.
Is the CIL368 rated for automotive and outdoor environments?
Yes. The M12A variant carries an IP69K rating and stays stable from -40°C to +85°C, so it handles pressure washing, rain, dust, and automotive temperature cycling.
What cameras are compatible with the CIL368 M12 lens?
The CIL368 is mechanically compatible with e-con Systems using a 10-13mm holder, Allied Vision Alvium, FLIR Blackfly S, iDS uEye LE, The Imaging Source, and Basler Dart S-mount cameras. The Commonlands CLA024 lens holder works for integration, and other compatible mounts are available.
Does the CIL368 ship same day from the United States?
Yes. Orders placed before 12 PM PST ship same day from our San Diego warehouse.
Can I get a 3D model or mechanical drawing for the CIL368?
Yes. The product page includes an interactive 3D model viewer, and engineering@commonlands.com can provide downloadable STP files and detailed mechanical drawings.
