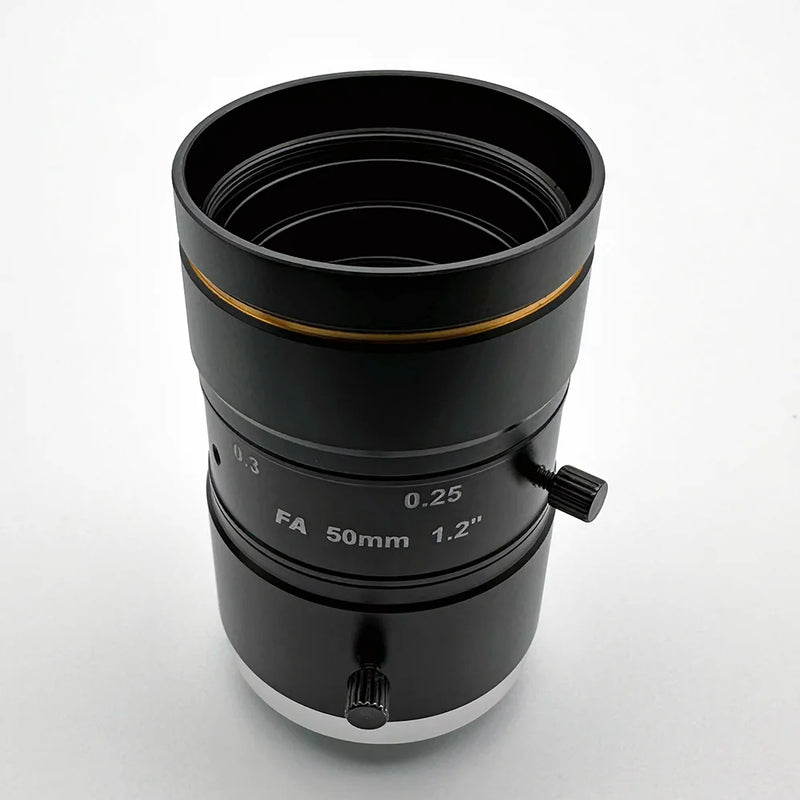

50mm C-Mount lens for up to 1.2" sensors such as IMX541
50mm C-Mount Objektiv 1.2" 25MP
The CIL556 is a 50mm C-Mount lens for up to 25MP 1.2" sensor format type with pixel pitch of 2.74um such as IMX541. The aperture of F/2.8 is adjustable to F/16.
In stock — orders before 12 PM PST ship same day
Merkmale des Objektivs
25MP Resolution
Suitable for 2.74um pixel pitch sensors
Adjustable Aperture
An F/2.8-F/16 adjustable aperture allows for optimized performance
Tabelle der optischen und mechanischen Spezifikationen
| Objektiv Parameter | Leistung Detail |
|---|---|
| Teil Nummer | CIL556 |
| EFL | 50.0 |
| F# | 2.8 |
| Sichtfeld | 17° @ 19.4mm — Calculate FoV for your sensor |
| Bildkreis | 19.4mm |
| Verzerrung | -0.02% from Rectilinear |
| Gewicht | 96g |
| Bauwesen | Alles Glas |
Mechanisches Layout
Frequently asked questions
What sensors work with the CIL556 50mm C-mount lens?
The CIL556 fits 1.2″ format sensors with 2.74µm pixel pitch, resolving up to 25MP. The Sony IMX541 and similar sensors in the 1.2″ class are a good match for the 19.4mm image circle.
How much distortion does the CIL556 have?
Distortion is -0.02% from rectilinear. That is essentially zero, so the lens works for dimensional gauging and metrology without software correction in most systems.
Can I adjust the aperture on the CIL556?
Yes, the iris adjusts from F/2.8 to F/16. Stopping down increases depth of field and corner sharpness, but it costs you light throughput.
Is the CIL556 compatible with CS-mount cameras?
Yes, C-mount lenses work on CS-mount cameras with a 5mm spacer adapter. The adapter only accounts for the 5mm flange distance difference, so optical performance stays the same.
Does the CIL556 50mm lens ship from the United States?
Yes, Commonlands ships in-stock C-mount lenses same day from San Diego, California for orders placed before 12 PM PST.
What is the working distance range for the CIL556?
The CIL556 focuses from 250mm to infinity. If you need a closer working distance, a C-mount extension tube can help, but it will reduce infinity focus capability.
